UUID vs SnowflakeId vs ULID in mysql for secondary index

Did some tinkering on how the data is stored in pages when UUID, SnowflakeId and ULID are stored as secondary indexes.

UUID

Schema

CREATE TABLE `users_uuid` (
  `id` int NOT NULL AUTO_INCREMENT,
  `uuid` varchar(36) NOT NULL,
  `name` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `idx_uuid` (`uuid`)
) ENGINE=InnoDB AUTO_INCREMENT=2000001 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci

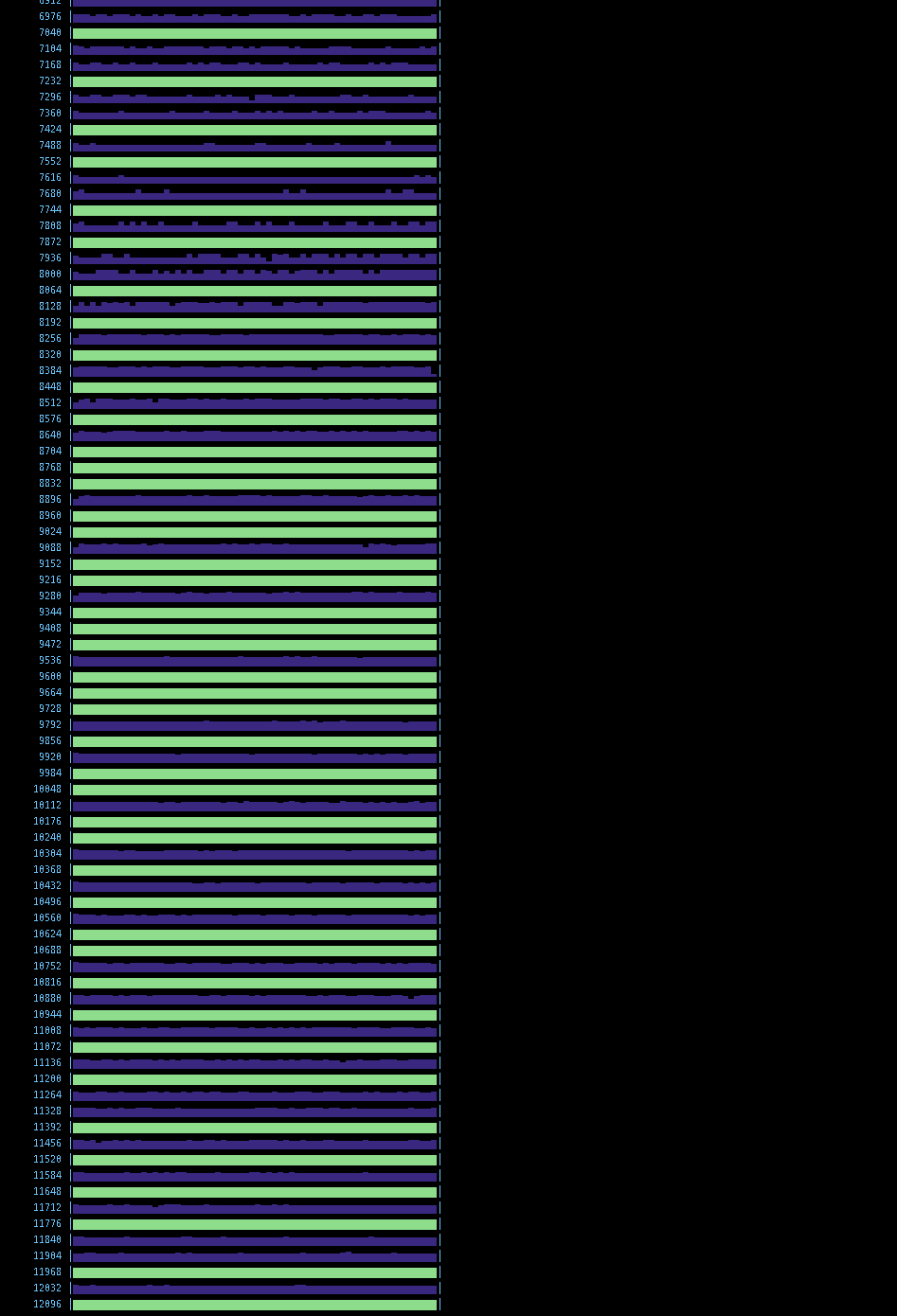

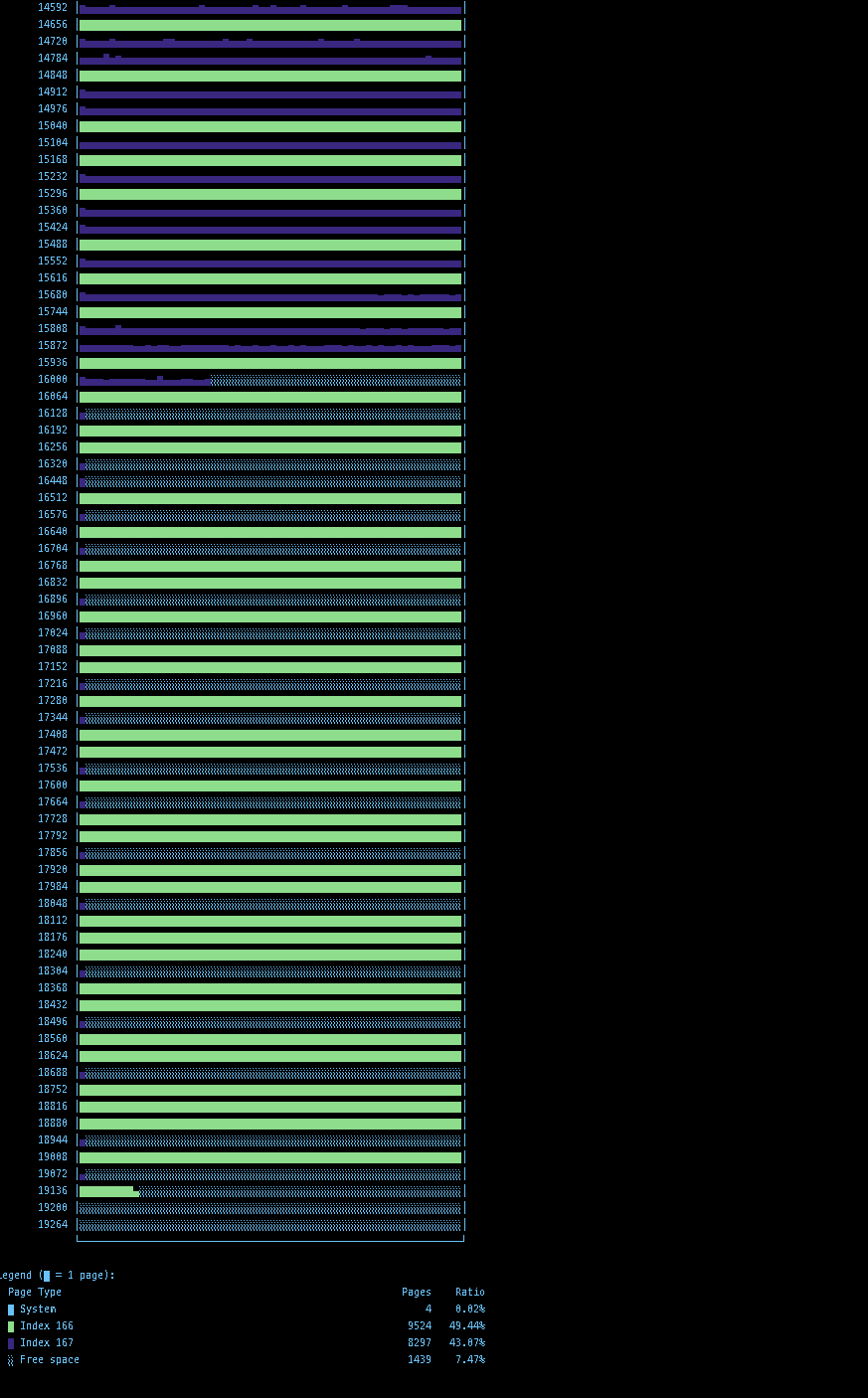

Page layout

SnowflakeId

Schema

CREATE TABLE `users_snowflake` (
  `id` int NOT NULL AUTO_INCREMENT,
  `snowflake_id` bigint unsigned NOT NULL,
  `name` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `idx_snowflake_id` (`snowflake_id`)
) ENGINE=InnoDB AUTO_INCREMENT=2000001 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci

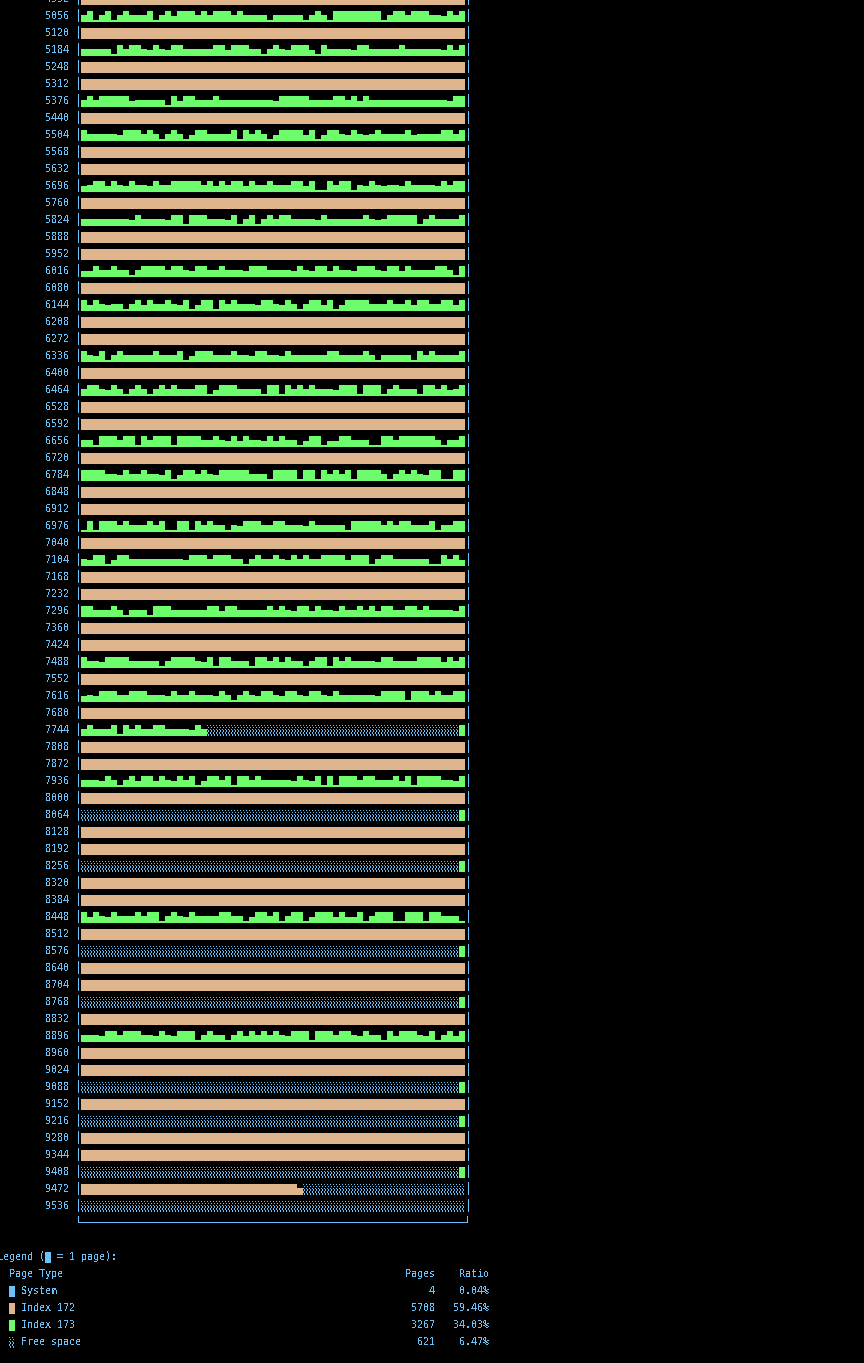

Page Layout

ULID

Schema

CREATE TABLE `users_ulid` (
  `id` int NOT NULL AUTO_INCREMENT,
  `ulid` varchar(26) NOT NULL,
  `name` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `idx_ulid` (`ulid`)
) ENGINE=InnoDB AUTO_INCREMENT=1000001 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci

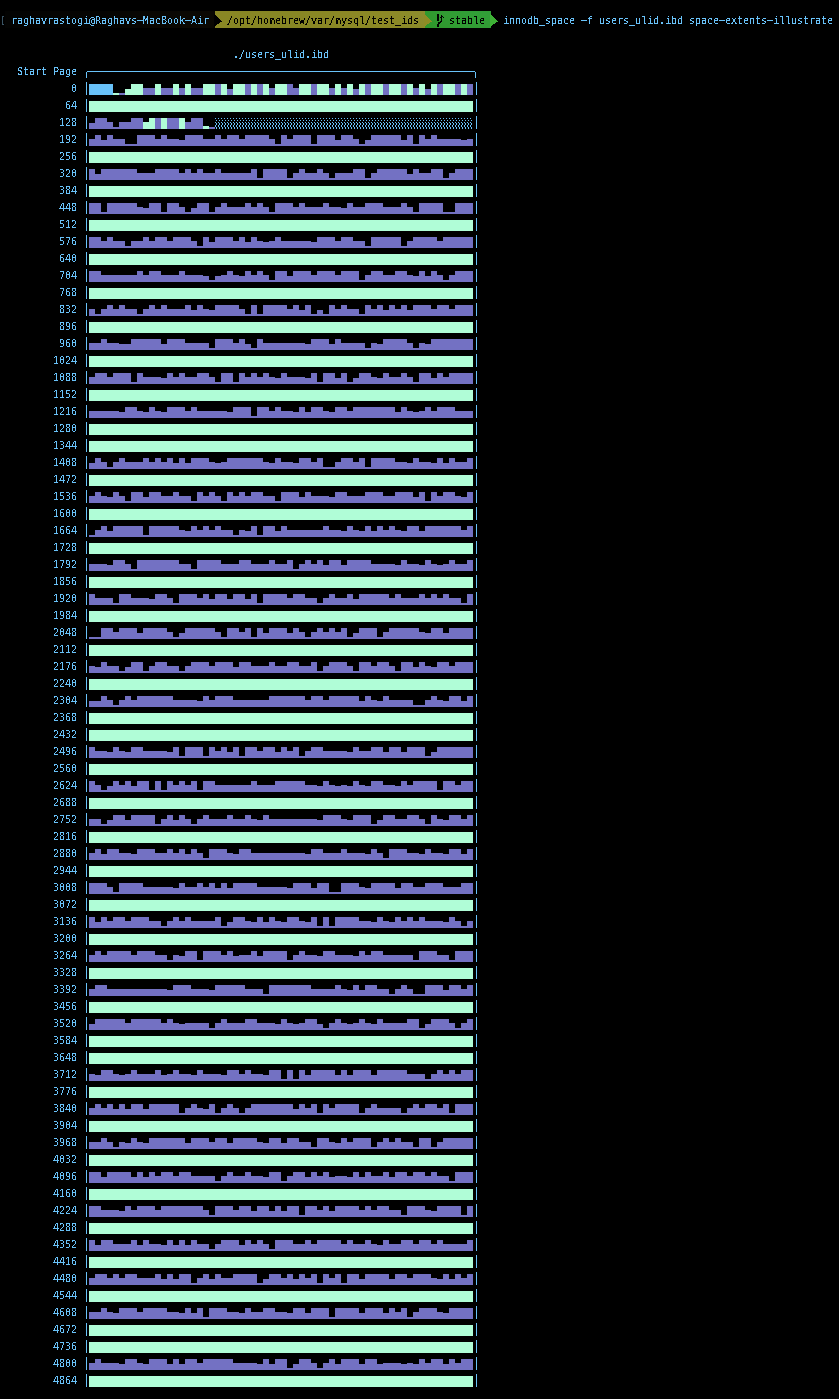

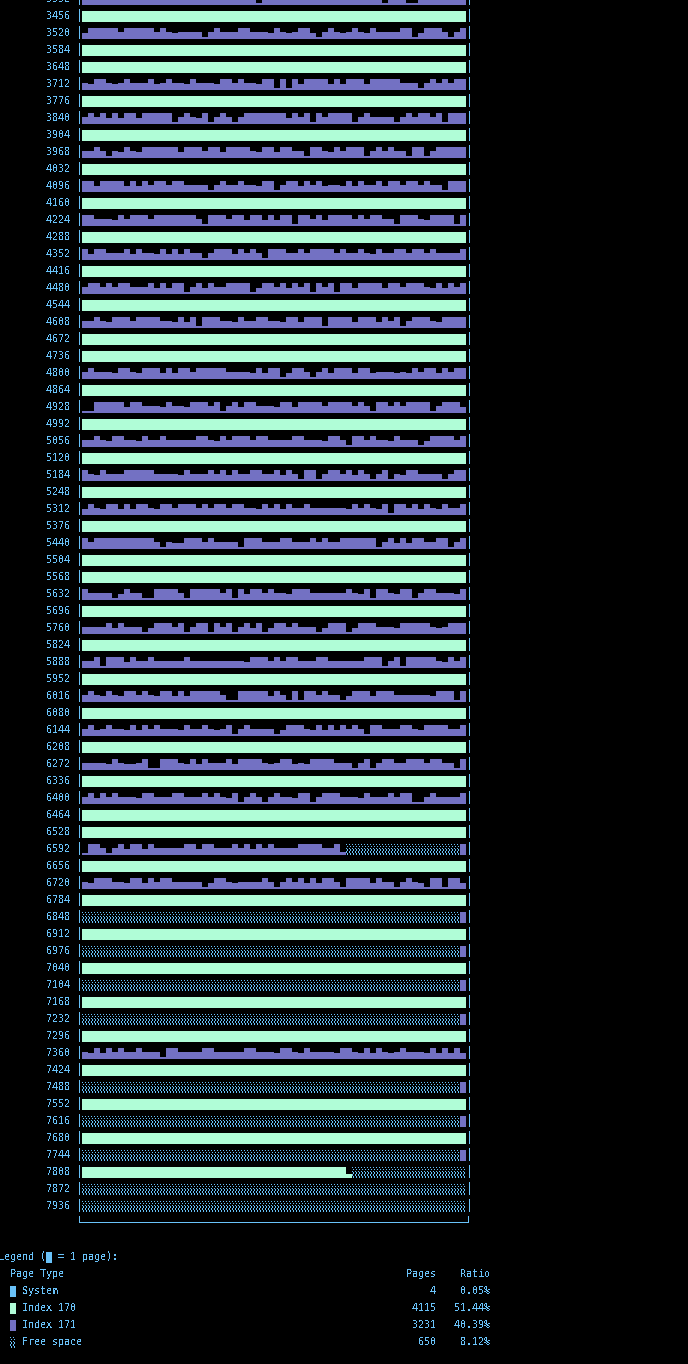

Page Layout

Script to generate Millions of Ids

package main

import (
	"database/sql"
	"flag"
	"fmt"
	"log"
	"math/rand"
	"time"

	"github.com/bwmarrin/snowflake"
	_ "github.com/go-sql-driver/mysql"
	"github.com/google/uuid"
	"github.com/oklog/ulid/v2"
)

// Snowflake ID generator (naive)
func generateSnowflakeID() uint64 {
	// Create a new Node with a Node number of 1
	node, err := snowflake.NewNode(rand.Int63n(1023))
	if err != nil {
		fmt.Println(err)
	}
	return uint64(node.Generate().Int64())
}

// ULID generator
func generateULID() string {
	entropy := ulid.Monotonic(rand.New(rand.NewSource(time.Now().UnixNano())), 0)
	id := ulid.MustNew(ulid.Timestamp(time.Now()), entropy)
	return id.String()
}

func insertUUIDs(db *sql.DB, total int) {
	stmt, err := db.Prepare("INSERT INTO users_uuid (uuid, name) VALUES (?, ?)")
	if err != nil {
		log.Fatal(err)
	}
	defer stmt.Close()

	for i := 0; i < total; i++ {
		id := uuid.New().String()
		name := fmt.Sprintf("User_%d", i)
		if _, err := stmt.Exec(id, name); err != nil {
			log.Fatal(err)
		}
		if i%10000 == 0 {
			log.Printf("Inserted %d UUID rows...", i)
		}
	}
}

func insertSnowflakeIDs(db *sql.DB, total int) {
	stmt, err := db.Prepare("INSERT INTO users_snowflake (snowflake_id, name) VALUES (?, ?)")
	if err != nil {
		log.Fatal(err)
	}
	defer stmt.Close()

	for i := 0; i < total; i++ {
		id := generateSnowflakeID()
		name := fmt.Sprintf("User_%d", i)
		if _, err := stmt.Exec(id, name); err != nil {
			log.Fatal(err)
		}
		if i%10000 == 0 {
			log.Printf("Inserted %d Snowflake rows...", i)
		}
	}
}

func insertULIDs(db *sql.DB, total int) {
	stmt, err := db.Prepare("INSERT INTO users_ulid (ulid, name) VALUES (?, ?)")
	if err != nil {
		log.Fatal(err)
	}
	defer stmt.Close()

	for i := 0; i < total; i++ {
		id := generateULID()
		name := fmt.Sprintf("User_%d", i)
		if _, err := stmt.Exec(id, name); err != nil {
			log.Fatal(err)
		}
		if i%10000 == 0 {
			log.Printf("Inserted %d ULID rows...", i)
		}
	}
}

func main() {
	var mode string
	var count int
	flag.StringVar(&mode, "mode", "uuid", "Mode: uuid | snowflake | ulid")
	flag.IntVar(&count, "count", 1000000, "Number of rows to insert")
	flag.Parse()

	dsn := "rag594:raghav@tcp(127.0.0.1:3306)/test_ids?parseTime=true"
	db, err := sql.Open("mysql", dsn)
	if err != nil {
		log.Fatal(err)
	}
	defer db.Close()

	start := time.Now()

	switch mode {
	case "uuid":
		insertUUIDs(db, count)
	case "snowflake":
		insertSnowflakeIDs(db, count)
	case "ulid":
		insertULIDs(db, count)
	default:
		log.Fatalf("Unknown mode: %s", mode)
	}

	log.Printf("Done inserting %d rows using %s. Took: %s\n", count, mode, time.Since(start))
}
